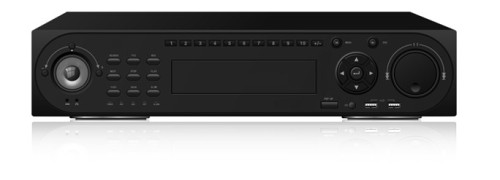

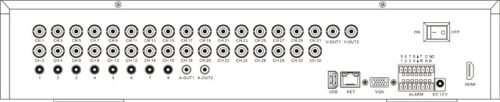

32CH DVR: Full D1; H.264;HDMI;2pcs/2TB; VGA

Payment Terms: T/T,WU,Paypal,Money Gram
Place of Origin: , China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: RJ-HV32
Production Capacity: 9999999999
Brand Name: Shoo-In
Means of Transport: Ocean,Land,Air
Delivery Date: in 72 hours

Support recording in 32ch Full D1.
Support 2 SATA ports.
Maximum output resolution of HDMI and VGA can be up to1280*1024.

Features:

  • Use H264 compresion algorithm.

  • Maximum output resolution of HDMI and VGA can be up to1280*1024.

  • Support HDMI,VGA and CVBS output synchronously.

  • Support voice intercorm.

  • Support electronic zoom in preview and playback.

  • Support pinyin input system.

  • Support one key to run recording.

  • Support multiple PTZ control protocols.

  • Support search, playback, backup the recording according to events.

  • Support recording in 32ch CIF.

  • Support 2 SATA ports.

  • Built-in DDNS such as 3322.org,dyndns.com,oray.net,and buit-in ARSP "xmsecu.com".

  • Support NTP(Internet timing), DHCP(Automatically get IP)\Email(Mail Service)\UPNP(Universal Plug and Play);IP Filter(Permissions Set);FTP(Network Upload)32CH DVR: CIF; H.264;HDMI;2pcs/2TB; VGA32CH DVR: CIF; H.264;HDMI;2pcs/2TB; VGA32CH DVR: CIF; H.264;HDMI;2pcs/2TB; VGA

System

Main processor

High performance embedded microprocessor / Hi3520*2

Operating system

Embedded LINUX operating system

Language

English, Simplified Chinese , Traditional Chinese , Brazilian , Russian, Portuguese, Spanish , Italian , Korean , French , Czech , Hebrew , German , Finnish , Bulgarian , Swedish , Romanian , Greek, Etc.

System resources

Pentaplex function: Live, recording, playback, backup& remote access

Control mode

Front panel, USB mouse, Network, IR remote control

Video

Input

32CH, BNC(1.0Vp-p, 75Ω)

Output

2 TV, BNC(1.0V p-p, 75Ω), 1 VGA, 1 HDMI(Optional)

Standard

PAL / NTSC

VideoLoop


Audio

Input

8CH, RCA(200-2800mV,30KΩ)

Output

2CH, RCA(200-3000mV,5KΩ)

Voice intercom


Display

Display split

1 / 4 / 8 / 9 / 16 / 24 / 32

Resolution

1440*900, 1280*1024,1280*720, 1024*768, 800*600

Tour display

Support

OSD

Camera title, time, video loss, camera block, motion detection, recording

Record

Video/Audio compression

H.264/G711

Image resolution

D1(704 * 576/704 * 480), HD1(704 * 288/704 * 240), CIF(352 * 288/352 * 240)

Encoding speed

Main stream:CH1~32 CIF(1~25/30FPS)

Extra stream: CIF(1~25/30FPS),QCIF(1~25/30fps)

Image quality

1~6 level (level 6 is the best),VBR effectively

Record mode

Manual, schedule(always, motion detection, video lost, video blind, alarm), stop

Record sequence

Manual>Alarm>Motion detection>General

Alarm

Triggering event

Record, Snapshot, Alarm, Email

Motion detection

Area: 396(22 * 18), Sensitivity: 1-6 level

Video loss

Support

Alarm input

8CH

Alarm output

1CH

Playback and backup

Playback channel

1 / 4 / 8 / 9 / 16

Playback speed

CIF 200/240FPS

Search mode

Time/Date, Alarm, Motion detection Exact search(accurate to second)

Playback function

Play, Pause, Stop, Fast play, Slow play, full screen, backup

Back mode

Flash drive/USB HDD/CD-DVD RW/Network download

Network

Interface

RJ-45 port(10/100M)

Network functions

TCP/IP,UDP,DHCP,DNS,IPFilter,PPPOE,DDNS,FTP,Email,UPNP,Alarm Server ARSP

Remote operation

Monitor, PTZ control, Playback, System setting, File download, Log information

Hard disk

Interface

2 SATA Ports, each port support max 8TB HDD or 1 RW-DVD

management

Hard disk standby technology, hard disk failure alarm

Auxiliary interface

USB Ports

2 USB Ports: 1 for mouse control, 1 for backup

RS485

PTZ Control

Environment

Power supply

DC 12V,6A

Environment

-10℃ ~+55℃ /10~90%RH/86~106kpa

Dimension

2U, 510mm * 490mm * 180mm

Weight

8.7KG(without HDD)


32CH DVR: CIF; H.264;HDMI;2pcs/2TB; VGA
